Resultant Count Calculator (for Plied Yarns)

Formula for Resultant Count Calculator (for plied yarns)

Resultant Count = Single Yarn Count ÷ Number of Plies

Where:

• Resultant Count = The final count of the plied yarn
• Single Yarn Count = The count of a single yarn before plying
• Number of Plies = The number of single yarns twisted together to form the plied yarn

Why Resultant Count Matters in Textile Engineering

In textile manufacturing, plied yarns are created by twisting two or more single yarns together. This process is fundamental for enhancing the yarn’s strength, uniformity, and durability. By twisting the yarns together, manufacturers improve the yarn’s ability to withstand tension and stretching. Resultant count refers to the combined thickness or fineness of the yarn once it’s been plied.

Resultant count plays a significant role in determining the qualities of the finished fabric. For instance, fabrics made from plied yarns tend to be stronger, more durable, and offer better resistance to wear and tear. Accurate calculation of the resultant count ensures that the final fabric meets the required specifications, such as weight, texture, and flexibility.

Impact on Fabric Properties

A precise resultant count calculation influences how the fabric will behave once it’s woven or knitted. The texture and feel of the fabric depend on the fineness of the yarn, which is determined by the resultant count. Fabrics made from thicker plied yarns tend to be heavier and more durable, while those made from finer yarns are lighter and softer.

Consistency and Quality Control

In a textile manufacturing environment, consistency is crucial for product quality. Even slight variations in yarn thickness can lead to fabric defects such as uneven texture or poor strength. Accurate calculations of the resultant count help to ensure that the yarns are consistent in their combined form. This directly impacts the uniformity and quality of the finished product.

How to Calculate Resultant Count for Plied Yarns

Calculating the resultant count of plied yarns is simple once you understand the underlying formula. The formula for the resultant count of plied yarns is as follows:

1/N = 1/N₁ + 1/N₂ + 1/N₃ + ... + 1/Nₓ

Where:

• N = Resultant count of the plied yarn.
• N₁, N₂, N₃, …, Nₓ = The individual counts of the single yarns being plied.

It’s important to note that this formula assumes that all the yarns being plied are in the same system of measurement (such as all in English count or all in metric count).

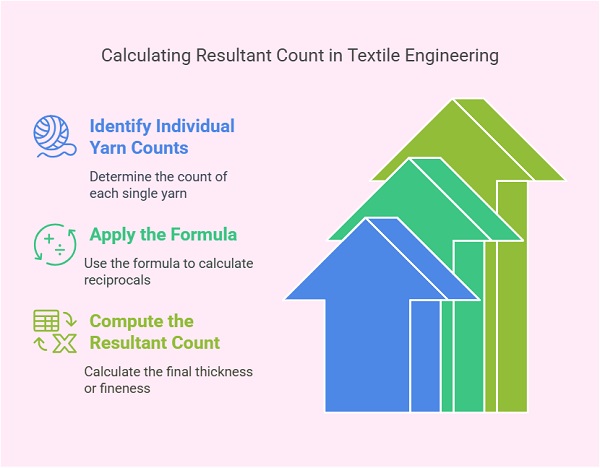

Step-by-Step Guide for Calculation

Step 1: Identify Individual Yarn Counts

To calculate the resultant count, the first step is to determine the count of each single yarn that will be plied together. The count represents the yarn’s fineness or thickness, and it is usually measured in either English count (which refers to the number of hanks of yarn weighing one pound) or metric count (which measures the weight of 1,000 meters of yarn in grams).

Step 2: Apply the Formula

Once you have the individual yarn counts, you can use the formula to calculate the resultant count. Start by calculating the reciprocal (1/N) of each individual yarn count and summing them up. For example, if you are plying three yarns with counts of 20s, 30s, and 40s, you would perform the following:

1/Resultant count = 1/20 + 1/30 + 1/40

Step 3: Compute the Resultant Count

Once you have the sum of the reciprocals, take the reciprocal of that sum to get the resultant count of the plied yarn. This will give you the final thickness or fineness of the plied yarn. In the example above:

1/Resultant count = 0.05 + 0.0333 + 0.025 = 0.1083

Thus, the resultant count is approximately 9.23s.

Example of Calculating Resultant Count

Let’s walk through a more detailed example of how to calculate the resultant count for plied yarns:

• Suppose you have three yarns with the following counts:
  • Yarn 1: 50s
  • Yarn 2: 60s
  • Yarn 3: 70s

Using the formula:

1/Resultant count = 1/50 + 1/60 + 1/70

Now, calculate the reciprocals:

1/50 = 0.02
1/60 = 0.0167
1/70 = 0.0143

Adding these up:

0.02 + 0.0167 + 0.0143 = 0.051

Now, take the reciprocal of the sum:

1/0.051 = 19.61s

Thus, the resultant count for this plied yarn is approximately 19.61s.

Factors Affecting the Resultant Count

The accuracy of the resultant count depends on several factors. While the formula is relatively simple, the final result can still be influenced by the following:

Yarn Uniformity

Yarn uniformity plays a significant role in determining the final count. If the individual yarns being plied together have inconsistent thicknesses or if one yarn is significantly thicker than the others, the resultant count may be skewed. This highlights the importance of selecting uniform yarns for plying to maintain consistency in the final product.

Twist Level

The twist level, or the number of twists per unit length of the yarn, can also influence the resultant count. When yarns are twisted together, the twist causes the yarns to become slightly thicker due to the compressed structure. This effect, however, is usually small compared to the yarn count itself.

Moisture Content

Moisture content can also affect the yarn’s weight and, therefore, the resultant count. When yarns absorb moisture from the environment, they can temporarily increase in weight, which might alter the calculated count. Therefore, it’s important to consider the moisture content of the yarns when calculating the resultant count, especially if the yarns are exposed to varying humidity levels.

Applications of Resultant Count in Textile Engineering

Fabric Design and Development

Textile engineers and designers must carefully choose the resultant count of plied yarns to achieve the desired fabric properties. A heavier resultant count will result in a thicker fabric, while a lighter count will lead to a softer and finer fabric. For example, garments designed for durability, such as jeans, often use plied yarns with thicker resultant counts, while lightweight fabrics like t-shirts or blouses use finer plied yarns.

Quality Control

Maintaining a consistent resultant count ensures that the finished fabric meets the required specifications. Consistency in yarn thickness is crucial for the fabric’s performance, such as its tensile strength and ability to resist wear. By regularly calculating and monitoring the resultant count, textile manufacturers can identify any inconsistencies in yarn production or plying processes and take corrective action.

Cost Optimization

Knowing how to calculate the resultant count can help optimize production costs. When the correct resultant count is chosen for the intended fabric, the manufacturer can avoid unnecessary material waste or overuse of raw yarns. By accurately calculating the required count, textile engineers can avoid excessive consumption of yarns and maintain cost efficiency.

Conclusion

Accurate calculation of the resultant count in plied yarns is a key aspect of textile engineering. Whether designing fabrics, controlling quality, or optimizing costs, understanding the resultant count ensures that the final product meets performance and durability standards. By following the straightforward calculation process, textile engineers can maintain consistency and produce high-quality fabrics, meeting both aesthetic and functional requirements.
